Hydraulic Crawler Drill |
| |
Main Feature & Application : |
| |
 |

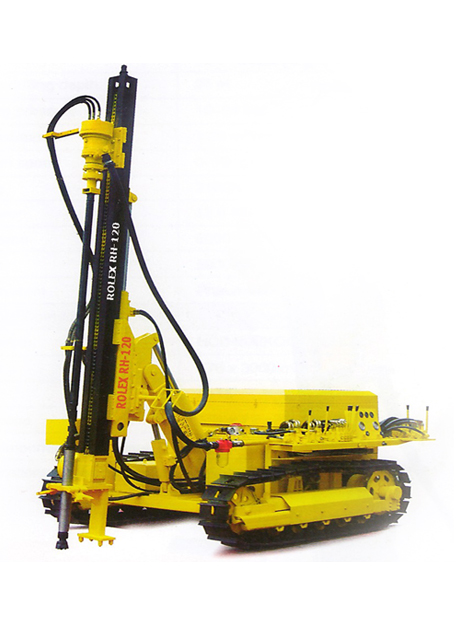

| RH120 is a kind of medium pressure crawler-mounted down the hole drilling rig |
| |

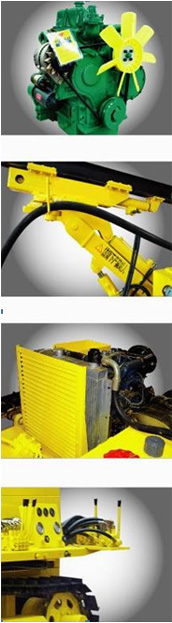

- Powerful and reliable two cylinder diesel engine
Adopt famous two cylinder diesel engine, big tow power, strong climb ability, low shake, stability work
Adopt two stage filter system |
| |
|
Adopt adjustable drilling boom, by adjust the hydraulic cylinder to change the drilling angle
|
| |
- Reliable hydraulic system
Adopt two gear pump to supply oil, reliable, good applicability, easily to repair
Adopt special hydraulic part, improve the reliability and stability
Add hydraulic oil cooler |
| |
Can control the drilling rig at the side of the drilling rig and back of the drilling rig, specially suit for walk in mountain.
Well-designed cover, beautiful and easily to repair
can be widely used to drill deep holes in many areas such as quarry, railway, construction, road construction, small-medium mine and so on. Used compressed air as power and equipped with hammer the crawler drill can drill blast hole, break hole, anchoring holes in different directions
|
| |
Technical Parameter : |
| KS120 is a kind of medium pressure crawler-mounted down the hole drilling rig |
| |
| Rock rigidity |
f=6~20 |
| Dia. of hole |
80~115mm |
| Optium drilling Depth |
25M |
| Walking speed |
0~2.0 km/h |
| Climb ability |
30º |
| Dimension |
4400*2200*2050mm |
| Weight |
3500 kg |
| Min distance off-ground |
290mm |
| Compensate of Rail |
1200mm |
| Feeding stroke |
3000mm |
| Working pressure |
0.7~1.4mpa |
| Air consumption |
≥13 m3/min |
| Rotating speed |
0~65rpm |
| Lift power |
20KN |
| Boom rise angle |
-19º~-60 º |
| Boom swing-angle |
±45º |
| Rail swing-angle |
-35º~+50 º |
| Rail pitching angle |
180º |
| Drive system |
YC 2108 Engine diesel engine |
|
 |
| |
Drilling tool with the machine when leave factory |
| Hammer |
1Nos |
| Rod |
15 Meter |
| Bit |
2 Pcs |
| Air hose |
1 Bundle |
|
|
| |
